MI-275

Gauge Options: 24

Coverage Options: 18″

Our mechanically seamed panels, designed for architectural and commercial applications, are available in different configurations to accommodate a large variety of situations. The traditional flat-pan look is not only aesthetically pleasing but engineered to exceed most wind load requirements in the country.

The panel is secured with concealed clips and the side laps are formed closed with our jobsite seaming machine.

MI-275

General Specification

Limited 40-year warranty paint
Finishes: 11 standard PVDF colors – 24 gauge
Corrosion Protection on Substrate:
- AZ-50 (ASTM A792) for painted Galvalume
- G-60 (ASTM A653) for painted Galvanized
- G-90 (ASTM A653) for PVDF painted 24 gauge
Sheet lengths: One inch increments to any length
Conditions may require side lap butyl sealant
Optional: 22 gauge steel, custom colors, and pre-painted aluminum

24 Gauge Colors

: SMP Charred Cedar

: PVDF Colonial Red

: PVDF Dark Bronze

: PVDF Dark Gray

: PVDF Evergreen

: Galvalume

: PVDF Light Bronze

: PVDF Matte Black

: PVDF Regal White

: PVDF Slate Gray

: PVDF Sandstone

: PVDF Weathered Zinc

Gauge	24
Rib Height	2″
Panel Coverage	17 7/8″ width
Substrate Thickness	.0236″ min
Substrate Coating	G90
Tensile Strength	50,000 psi min (for UL)
Substrate ASTM Rating	ASTM A653
Paint Coating
Colors Available	10 colors
Surface Protector
Paint Warranty	40 Year Limited Warranty
Energy Star Approved	Yes
Primer Thickness	.3 mils top
Paint Thickness	.7 mils top
Seaming Bend Options	Single (90deg) or Double (180deg)

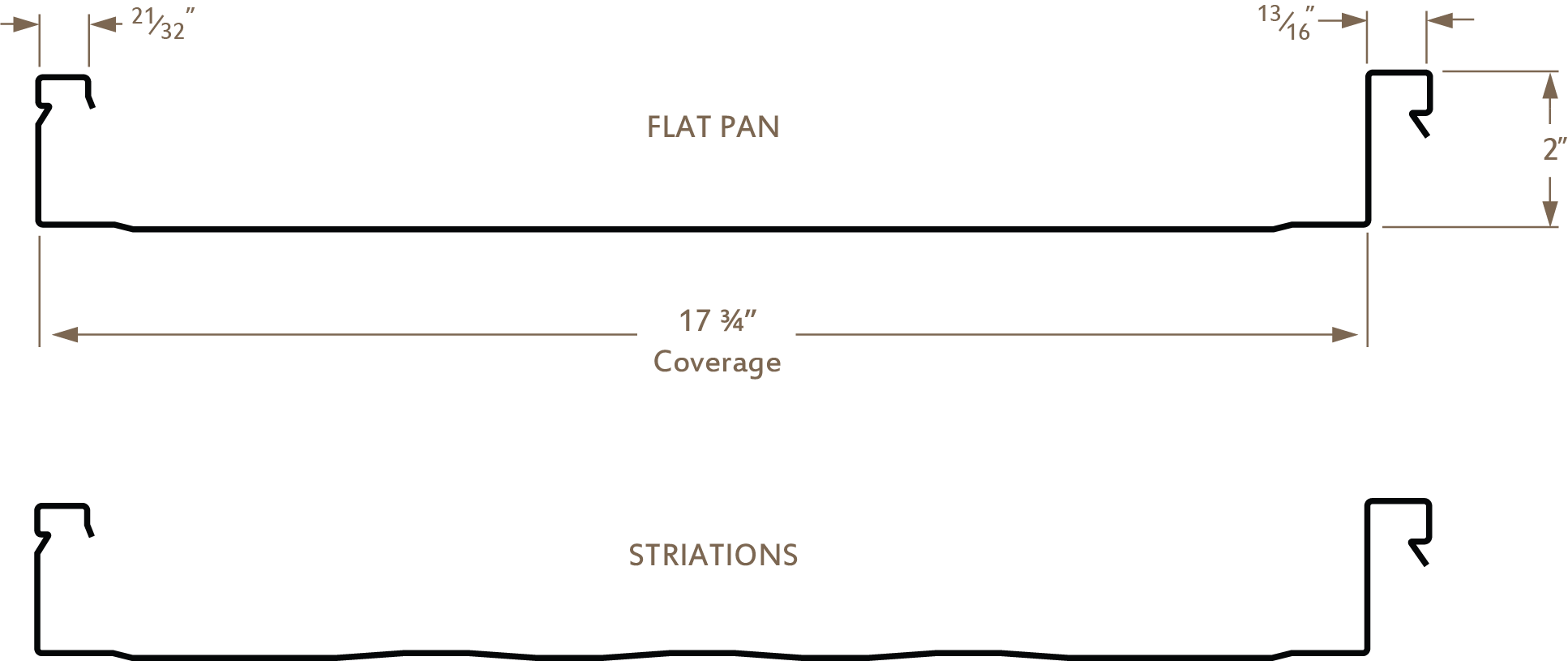

Pan Options (between ribs)	Striations, Bead Ribs, Smooth Flat Plan

MI-275

General Specification
- Limited 40-year warranty paint
- Finishes: 11 standard PVDF colors – 24 gauge
- Corrosion Protection on Substrate:
  - AZ-50 (ASTM A792) for painted Galvalume
  - G-60 (ASTM A653) for painted Galvanized
  - G-90 (ASTM A653) for PVDF painted 24 gauge
- Sheet lengths: One inch increments to any length
- Conditions may require side lap butyl sealant
- Optional: 22 gauge steel, custom colors, and pre-painted aluminum
Available Colors

24 Gauge Colors

SMP Charred Cedar

PVDF Colonial Red

PVDF Dark Bronze

PVDF Dark Gray

PVDF Evergreen

Galvalume

PVDF Light Bronze

PVDF Matte Black

PVDF Regal White

PVDF Slate Gray

PVDF Sandstone

PVDF Weathered Zinc

Panel Options

Gauge	24
Rib Height	2″
Panel Coverage	17 7/8″ width
Substrate Thickness	.0236″ min
Substrate Coating	G90
Tensile Strength	50,000 psi min (for UL)
Substrate ASTM Rating	ASTM A653
Paint Coating
Colors Available	10 colors
Surface Protector
Paint Warranty	40 Year Limited Warranty
Energy Star Approved	Yes
Primer Thickness	.3 mils top
Paint Thickness	.7 mils top
Seaming Bend Options	Single (90deg) or Double (180deg)
Pan Options (between ribs)	Striations, Bead Ribs, Smooth Flat Plan

(UL) Testing
- UL 2218 Impact Resistance
- UL 790, 263 Fire Resistance
- UL 580 Uplift Resistance
- ASTM E-1592
- ASTM E-1646
- ASTM E-1680
