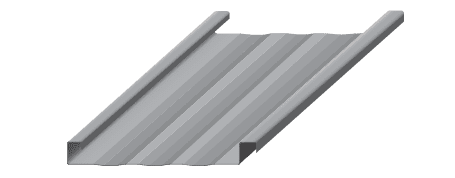

MI-200/ MI-210

Gauge Options: 24

Coverage Options: 18″

Our mechanically seamed panels, designed for architectural and commercial applications, are available in different configurations to accommodate a large variety of situations. The traditional flat-pan look is not only aesthetically pleasing but engineered to exceed most wind load requirements in the country.

The panel is secured with concealed clips and the side laps are formed closed with our jobsite seaming machine.

MI-200/ MI-210

General Specification

Panel Coverage: 16” or 18” standard
Rib Height: 1 ½” or 2”
24 gauge Substrate: Galvanized (G-90)
Energy Star approved Cool Roof pigments in all paint, reflecting at least 25% of the sun’s rays
Minimum roof slope: ¼:12 pitch
Single (90°) or Double (180°) Seaming Available
Choose from striations, bead ribs, or a smooth flat-pan between ribs
Weather-tight warranty options available – call for details
Floating clip or fixed clip options available
Factory applied side lap sealant available
Mechanically seamed panels may be installed directly over open purlins or solid sheathing
Panels cut to any manageable length in one inch increments

Jobsite roll-forming is available, which:

allows for longer panel lengths
eliminates the possibility of damage during delivery
eliminates crating cost and inconvenience

Custom Metal Options

22 gauge, Grade D steel
Pre-painted Aluminum

24 Gauge Colors

: SMP Charred Cedar

: PVDF Colonial Red

: PVDF Dark Bronze

: PVDF Dark Gray

: PVDF Evergreen

: Galvalume

: PVDF Light Bronze

: PVDF Matte Black

: PVDF Regal White

: PVDF Slate Gray

: PVDF Sandstone

: PVDF Weathered Zinc

Gauge	24
Rib Height	2″
Panel Coverage	18″ width
Substrate Thickness	.0236″ min
Substrate Coating	G90
Tensile Strength	50,000 psi min (for UL)
Substrate ASTM Rating	ASTM A653
Paint Coating
Colors Available	10 colors
Surface Protector
Paint Warranty	40 Year Limited Warranty
Energy Star Approved	Yes
Primer Thickness	.3 mils top
Paint Thickness	.7 mils top
Seaming Bend Options	Single (90deg) or Double (180deg)
Pan Options (between ribs)	Striations, Bead Ribs, Smooth Flat Plan

MI-200/ MI-210

General Specification
- Panel Coverage: 16” or 18” standard
- Rib Height: 1 ½” or 2”
- 24 gauge Substrate: Galvanized (G-90)
- Energy Star approved Cool Roof pigments in all paint, reflecting at least 25% of the sun’s rays
- Minimum roof slope: ¼:12 pitch
- Single (90°) or Double (180°) Seaming Available
- Choose from striations, bead ribs, or a smooth flat-pan between ribs
- Weather-tight warranty options available – call for details
- Floating clip or fixed clip options available
- Factory applied side lap sealant available
- Mechanically seamed panels may be installed directly over open purlins or solid sheathing
- Panels cut to any manageable length in one inch increments
Jobsite roll-forming is available, which:
- allows for longer panel lengths
- eliminates the possibility of damage during delivery
- eliminates crating cost and inconvenience
Custom Metal Options
- 22 gauge, Grade D steel
- Pre-painted Aluminum
Available Colors

24 Gauge Colors

SMP Charred Cedar

PVDF Colonial Red

PVDF Dark Bronze

PVDF Dark Gray

PVDF Evergreen

Galvalume

PVDF Light Bronze

PVDF Matte Black

PVDF Regal White

PVDF Slate Gray

PVDF Sandstone

PVDF Weathered Zinc

Panel Options

Gauge	24
Rib Height	2″
Panel Coverage	18″ width
Substrate Thickness	.0236″ min
Substrate Coating	G90
Tensile Strength	50,000 psi min (for UL)
Substrate ASTM Rating	ASTM A653
Paint Coating
Colors Available	10 colors
Surface Protector
Paint Warranty	40 Year Limited Warranty
Energy Star Approved	Yes
Primer Thickness	.3 mils top
Paint Thickness	.7 mils top
Seaming Bend Options	Single (90deg) or Double (180deg)
Pan Options (between ribs)	Striations, Bead Ribs, Smooth Flat Plan

(UL) Testing
