Gauge Options:
24
Coverage Options:
12″

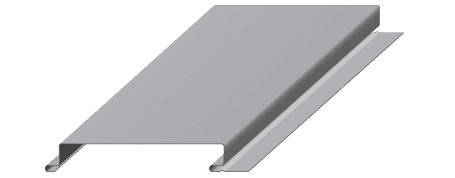

Flush Panel
Flush Panel is a concealed fastener system for creating sleek, smooth walls, vented soffits, or simple and attractive fascia coverings. Our Flush Panel gives you the option to think outside the standard metal building. Typically made using only 24 gauge or heavier high-quality steel, you may rest assured that your Flush Panel application has the utmost durability.

Flush Panel
General Specification

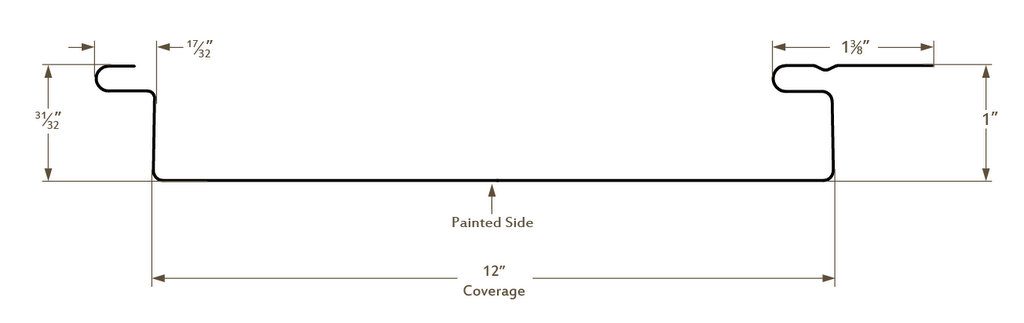

- Panel Depth: 1”
- Steel Thickness: 24 gauge
- Choose from a smooth panel, bead ribs, or striations
- Perforations available for acoustical or vented soffit applications
- Adjustable reveal available from 0”- 3” in ½” increments
- May be installed vertically or horizontally
- An attractive choice for wall, fascia, ceiling, and soffit applications
- Panels cut to any manageable length in one inch increments
- Jobsite roll-forming is available, which:
- allows for longer panel lengths
- eliminates the possibility of damage during delivery
- eliminates crating cost and inconvenience
26 Gauge Colors
-
- SMP Brick Red
-
- SMP Charcoal
-
- SMP Coco Brown
-
- SMP Copper Penny
-
- SMP Dark Blue
-
- SMP Dark Brown
-
- SMP Forest Green
-
- SMP Gray
-
- SMP Hickory
-
- SMP Hunter Green
-
- SMP Red Cedar
-
- SMP Sage Green
-
- SMP Slate Blue
-
- SMP Weathered Copper
-
- SMP White
24 Gauge Colors
-
- SMP Charred Cedar
-
- PVDF Colonial Red
-
- PVDF Dark Bronze
-
- PVDF Dark Gray
-
- PVDF Evergreen
-
- Galvalume
-
- PVDF Light Bronze
-
- PVDF Matte Black
-
- PVDF Regal White
-
- PVDF Sandstone
-
- PVDF Slate Gray
i.e., 29 Gauge Colors
Available Options | PVDF Standard Colors |
---|---|
Panel Coverage | 12″ width |
Tensile Strength | 50,000 psi min (for UL) |
Substrate Thickness | .0236″ min |
Gauge | 24 |
Substrate Coating | Heavy Galvanized (G90) |
Substrate ASTM Rating | ASTM A653 |
Paint Coating | |
Paint Warranty | 40 Year Limited Warranty |
Colors Available | 10 colors |
Surface Protector | |
Energy Star Approved | yes, CoolPaint Technology |
Primer Thickness | .3 mils top |
Paint Thickness | .7 mils top |
Flush Panel
-
- Panel Depth: 1”
- Steel Thickness: 24 gauge
- Choose from a smooth panel, bead ribs, or striations
- Perforations available for acoustical or vented soffit applications
- Adjustable reveal available from 0”- 3” in ½” increments
- May be installed vertically or horizontally
- An attractive choice for wall, fascia, ceiling, and soffit applications
- Panels cut to any manageable length in one inch increments
- Jobsite roll-forming is available, which:
- allows for longer panel lengths
- eliminates the possibility of damage during delivery
- eliminates crating cost and inconvenience
-
26 Gauge Colors
-
- SMP Brick Red
-
- SMP Charcoal
-
- SMP Coco Brown
-
- SMP Copper Penny
-
- SMP Dark Blue
-
- SMP Dark Brown
-
- SMP Forest Green
-
- SMP Gray
-
- SMP Hickory
-
- SMP Hunter Green
-
- SMP Red Cedar
-
- SMP Sage Green
-
- SMP Slate Blue
-
- SMP Weathered Copper
-
- SMP White
24 Gauge Colors
-
- SMP Charred Cedar
-
- PVDF Colonial Red
-
- PVDF Dark Bronze
-
- PVDF Dark Gray
-
- PVDF Evergreen
-
- Galvalume
-
- PVDF Light Bronze
-
- PVDF Matte Black
-
- PVDF Regal White
-
- PVDF Sandstone
-
- PVDF Slate Gray
i.e., 29 Gauge Colors
-
-
Available Options PVDF Standard Colors Panel Coverage 12″ width Tensile Strength 50,000 psi min (for UL) Substrate Thickness .0236″ min Gauge 24 Substrate Coating Heavy Galvanized (G90) Substrate ASTM Rating ASTM A653 Paint Coating Paint Warranty 40 Year Limited Warranty Colors Available 10 colors Surface Protector Energy Star Approved yes, CoolPaint Technology Primer Thickness .3 mils top Paint Thickness .7 mils top
